Query Code

Posted on: 16/06/2018 (last updated: 09/03/2022) by Kathryn Vargas
tl;dr
Shortcuts

Query Code is the code generation feature in Studio 3T that converts MongoDB, aggregation, and SQL queries to JavaScript (Node.js), Java (2.x and 3.x driver API), Python, C#, PHP, Ruby, and the mongo shell language in one click. Try it today.

Generate query code – Ctrl + G (⌘+ G)

Basics

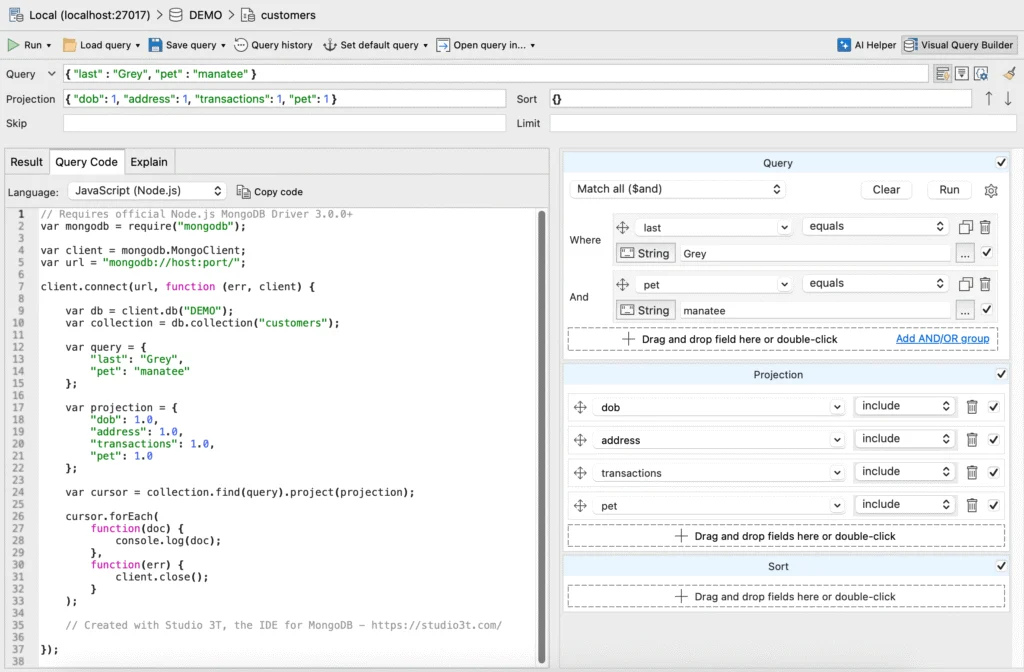

Query Code automatically translates MongoDB queries built through the Visual Query Builder and Aggregation Editor – as well as SQL queries built through SQL Query – to the following languages:

  • JavaScript (Node.js)
  • Python
  • Java (2.x and 3.x driver API)
  • C#
  • PHP
  • Ruby
  • The complete mongo shell language

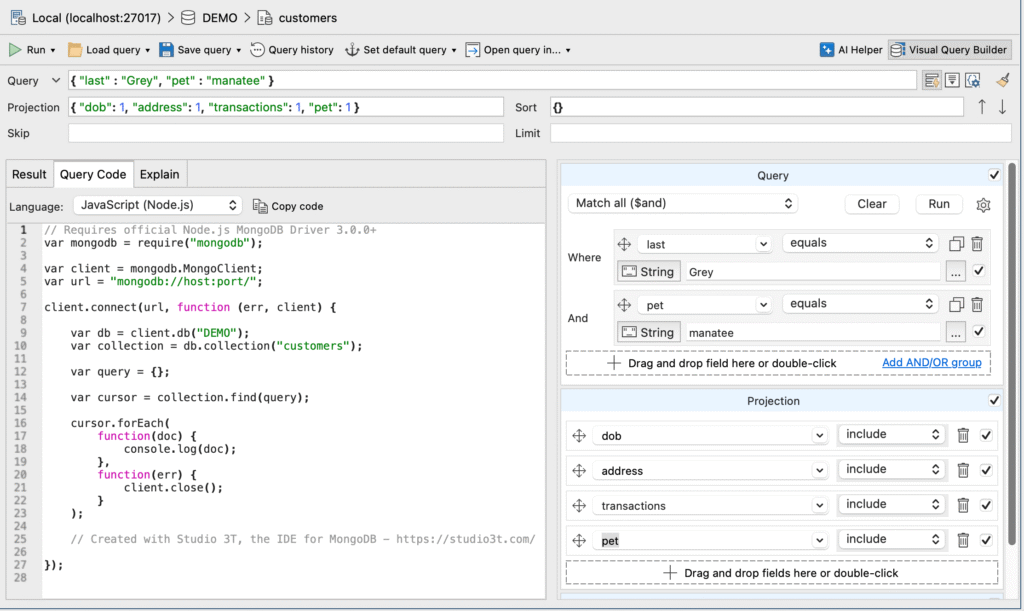

Simply click on the Query Code tab to view the generated code.

So, again, where exactly is Query Code available?

  • Visual Query Builder – Studio 3T’s drag-and-drop MongoDB query builder. Execute MongoDB queries with no JSON required.
  • SQL Query – Query MongoDB with SQL statements and joins, and see how they translate to the mongo shell language.
  • Aggregation Editor – Studio 3T’s aggregation pipeline builder. Write MongoDB aggregation queries in stages, apply operators, and view inputs/outputs at each step.

Want to know more about the four ways to query in Studio 3T?  Here’s the guide.

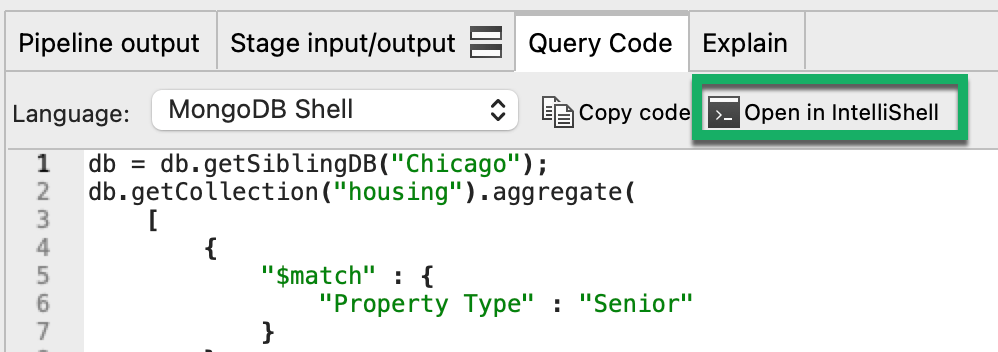

Open mongo shell code directly in IntelliShell

You can open mongo shell code generated by Query Code directly in IntelliShell, Studio 3T’s built-in mongo shell.

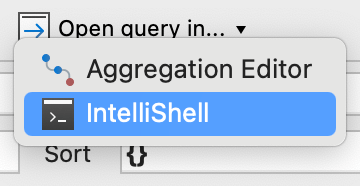

Simply click on the shell icon wherever Query Code is available, which is activated when mongo shell is chosen as the target language.

Open mongo shell code directly in IntelliShell

Code examples

SQL to MongoDB

Original SQL query:

select count(*), max(units), zip_code
from housing
group by zip_code
order by max(units) desc;

MongoDB query (to be used in the examples below):

db.getCollection("housing").aggregate(
    [
        {
            "$group" : {
                "_id" : {
                    "zip_code" : "$zip_code"
                },
                "COUNT(*)" : {
                    "$sum" : NumberInt(1)
                },
                "MAX(units)" : {
                    "$max" : "$units"
                }
            }
        },
        {
            "$project" : {
                "_id" : NumberInt(0),
                "COUNT(*)" : "$COUNT(*)",
                "MAX(units)" : "$MAX(units)",
                "zip_code" : "$_id.zip_code"
            }
        },
        {
            "$sort" : {
                "MAX(units)" : NumberInt(-1)
            }
        },
        {
            "$project" : {
                "_id" : NumberInt(0),
                "COUNT(*)" : "$COUNT(*)",
                "MAX(units)" : "$MAX(units)",
                "zip_code" : "$zip_code"
            }
        }
    ]
);

MongoDB to Node.js

Node.js translation:

// Requires official Node.js MongoDB Driver 3.0.0+

var mongodb = require("mongodb");

var client = mongodb.MongoClient;
var url = "mongodb://host:port/";

client.connect(url, function (err, client) {

    var db = client.db("demo-sql");
    var collection = db.collection("housing");

    var options = {
        allowDiskUse: false
    };

    var pipeline = [
        {
            "$group": {
                "_id": {
                    "zip_code": "$zip_code"
                },
                "COUNT(*)": {
                    "$sum": 1
                },
                "MAX(units)": {
                    "$max": "$units"
                }
            }
        },
        {
            "$project": {
                "_id": 0,
                "COUNT(*)": "$COUNT(*)",
                "MAX(units)": "$MAX(units)",
                "zip_code": "$_id.zip_code"
            }
        },
        {
            "$sort": {
                "MAX(units)": -1
            }
        },
        {
            "$project": {
                "_id": 0,
                "COUNT(*)": "$COUNT(*)",
                "MAX(units)": "$MAX(units)",
                "zip_code": "$zip_code"
            }
        }
    ];

    var cursor = collection.aggregate(pipeline, options);

    cursor.forEach(
        function(doc) {
            console.log(doc);
        },
        function(err) {
            client.close();
        }
    );

    // Created with Studio 3T, the IDE for MongoDB - https://studio3t.com/

});

MongoDB to Python

Python translation:

# Requires pymongo 3.6.0+
from bson.son import SON
from pymongo import MongoClient

client = MongoClient("mongodb://host:port/")
database = client["demo-sql"]
collection = database["housing"]

# Created with Studio 3T, the IDE for MongoDB - https://studio3t.com/

pipeline = [
    {
        u"$group": {
            u"_id": {
                u"zip_code": u"$zip_code"
            },
            u"COUNT(*)": {
                u"$sum": 1
            },
            u"MAX(units)": {
                u"$max": u"$units"
            }
        }
    },
    {
        u"$project": {
            u"_id": 0,
            u"COUNT(*)": u"$COUNT(*)",
            u"MAX(units)": u"$MAX(units)",
            u"zip_code": u"$_id.zip_code"
        }
    },
    {
        u"$sort": SON([ (u"MAX(units)", -1) ])
    },
    {
        u"$project": {
            u"_id": 0,
            u"COUNT(*)": u"$COUNT(*)",
            u"MAX(units)": u"$MAX(units)",
            u"zip_code": u"$zip_code"
        }
    }
]

cursor = collection.aggregate(
    pipeline,
    allowDiskUse = False
)
try:
    for doc in cursor:
        print(doc)
finally:
    client.close()

MongoDB to Java (2.x driver API)

Java (2.x driver API) translation:

// Requires official Java MongoDB Driver 2.14+
import com.mongodb.AggregationOptions;
import com.mongodb.BasicDBObject;
import com.mongodb.Cursor;
import com.mongodb.DB;
import com.mongodb.DBCollection;
import com.mongodb.DBObject;
import com.mongodb.MongoClient;
import java.util.Arrays;
import java.util.List;

public class Program {

    public static void main(String[] args) {

        try {

            MongoClient client = new MongoClient("localhost", 27017);

            try {

                DB database = client.getDB("demo-sql");
                DBCollection collection = database.getCollection("housing");

                // Created with Studio 3T, the IDE for MongoDB - https://studio3t.com/

                List pipeline = Arrays.asList(
                        new BasicDBObject()
                                .append("$group", new BasicDBObject()
                                        .append("_id", new BasicDBObject()
                                                .append("zip_code", "$zip_code")
                                        )
                                        .append("COUNT(*)", new BasicDBObject()
                                                .append("$sum", 1)
                                        )
                                        .append("MAX(units)", new BasicDBObject()
                                                .append("$max", "$units")
                                        )
                                ),
                        new BasicDBObject()
                                .append("$project", new BasicDBObject()
                                        .append("_id", 0)
                                        .append("COUNT(*)", "$COUNT(*)")
                                        .append("MAX(units)", "$MAX(units)")
                                        .append("zip_code", "$_id.zip_code")
                                ),
                        new BasicDBObject()
                                .append("$sort", new BasicDBObject()
                                        .append("MAX(units)", -1)
                                ),
                        new BasicDBObject()
                                .append("$project", new BasicDBObject()
                                        .append("_id", 0)
                                        .append("COUNT(*)", "$COUNT(*)")
                                        .append("MAX(units)", "$MAX(units)")
                                        .append("zip_code", "$zip_code")
                                )
                );
                AggregationOptions options = AggregationOptions.builder()
                        // always use cursor mode
                        .outputMode(AggregationOptions.OutputMode.CURSOR)
                        .allowDiskUse(false)
                        .build();


                Cursor cursor = collection.aggregate(pipeline, options);
                while (cursor.hasNext()) {
                    BasicDBObject document = (BasicDBObject) cursor.next();
                    System.out.println(document.toString());
                }

            } finally {
                client.close();
            }

        } catch (Exception e) {
            // handle exception
        }
    }

}

MongoDB to Java (3.x driver API)

Java (3.x driver API) translation:

// Requires official Java MongoDB Driver 3.6+
import com.mongodb.Block;
import com.mongodb.MongoClient;
import com.mongodb.MongoException;
import com.mongodb.client.MongoCollection;
import com.mongodb.client.MongoDatabase;
import java.util.Arrays;
import java.util.List;
import org.bson.Document;
import org.bson.conversions.Bson;

public class Program {

    public static void main(String[] args) {

        try (MongoClient client = new MongoClient("localhost", 27017)) {

            MongoDatabase database = client.getDatabase("demo-sql");
            MongoCollection collection = database.getCollection("housing");

            // Created with Studio 3T, the IDE for MongoDB - https://studio3t.com/

            Block processBlock = new Block() {
                @Override
                public void apply(final Document document) {
                    System.out.println(document);
                }
            };

            List<? extends Bson> pipeline = Arrays.asList(
                    new Document()
                            .append("$group", new Document()
                                    .append("_id", new Document()
                                            .append("zip_code", "$zip_code")
                                    )
                                    .append("COUNT(*)", new Document()
                                            .append("$sum", 1)
                                    )
                                    .append("MAX(units)", new Document()
                                            .append("$max", "$units")
                                    )
                            ),
                    new Document()
                            .append("$project", new Document()
                                    .append("_id", 0)
                                    .append("COUNT(*)", "$COUNT(*)")
                                    .append("MAX(units)", "$MAX(units)")
                                    .append("zip_code", "$_id.zip_code")
                            ),
                    new Document()
                            .append("$sort", new Document()
                                    .append("MAX(units)", -1)
                            ),
                    new Document()
                            .append("$project", new Document()
                                    .append("_id", 0)
                                    .append("COUNT(*)", "$COUNT(*)")
                                    .append("MAX(units)", "$MAX(units)")
                                    .append("zip_code", "$zip_code")
                            )
            );

            collection.aggregate(pipeline)
                    .allowDiskUse(false)
                    .forEach(processBlock);

        } catch (MongoException e) {
            // handle MongoDB exception
        }
    }

}

MongoDB to C#

C# translation:

// Requires official C# and .NET MongoDB Driver 2.5+
using MongoDB.Bson;
using MongoDB.Driver;
using System;
using System.Threading.Tasks;

namespace MongoDBQuery
{
    class Program
    {
        static async Task _Main()
        {

            IMongoClient client = new MongoClient("mongodb://host:port/");
            IMongoDatabase database = client.GetDatabase("demo-sql");
            IMongoCollection collection = database.GetCollection("housing");

            // Created with Studio 3T, the IDE for MongoDB - https://studio3t.com/

            var options = new AggregateOptions() {
                AllowDiskUse = false
            };

            PipelineDefinition<BsonDocument, BsonDocument> pipeline = new BsonDocument[]
            {
                new BsonDocument("$group", new BsonDocument()
                        .Add("_id", new BsonDocument()
                                .Add("zip_code", "$zip_code")
                        )
                        .Add("COUNT(*)", new BsonDocument()
                                .Add("$sum", 1)
                        )
                        .Add("MAX(units)", new BsonDocument()
                                .Add("$max", "$units")
                        )),
                new BsonDocument("$project", new BsonDocument()
                        .Add("_id", 0)
                        .Add("COUNT(*)", "$COUNT(*)")
                        .Add("MAX(units)", "$MAX(units)")
                        .Add("zip_code", "$_id.zip_code")),
                new BsonDocument("$sort", new BsonDocument()
                        .Add("MAX(units)", -1)),
                new BsonDocument("$project", new BsonDocument()
                        .Add("_id", 0)
                        .Add("COUNT(*)", "$COUNT(*)")
                        .Add("MAX(units)", "$MAX(units)")
                        .Add("zip_code", "$zip_code"))
            };

            using (var cursor = await collection.AggregateAsync(pipeline, options))
            {
                while (await cursor.MoveNextAsync())
                {
                    var batch = cursor.Current;
                    foreach (BsonDocument document in batch)
                    {
                        Console.WriteLine(document.ToJson());
                    }
                }
            }
        }

        static void Main(string[] args)
        {
            _Main().Wait();
        }
    }
}

MongoDB to PHP

PHP translation:

<?php /** * Requires: * - PHP MongoDB Extension (https://php.net/manual/en/set.mongodb.php) * - MongoDB Library (`composer require mongodb/mongodb`) */ require 'vendor/autoload.php'; use MongoDB\Client; // Created with Studio 3T, the IDE for MongoDB - https://studio3t.com/ $client = new Client('mongodb://localhost:27017'); $collection = $client->{'demo-sql'}->housing;

$options = [];

$pipeline = [
    [
        '$group' => [
            '_id' => [
                'zip_code' => '$zip_code'
            ],
            'COUNT(*)' => [
                '$sum' => 1
            ],
            'MAX(units)' => [
                '$max' => '$units'
            ]
        ]
    ], [
        '$project' => [
            '_id' => 0,
            'COUNT(*)' => '$COUNT(*)',
            'MAX(units)' => '$MAX(units)',
            'zip_code' => '$_id.zip_code'
        ]
    ], [
        '$sort' => [
            'MAX(units)' => -1
        ]
    ], [
        '$project' => [
            '_id' => 0,
            'COUNT(*)' => '$COUNT(*)',
            'MAX(units)' => '$MAX(units)',
            'zip_code' => '$zip_code'
        ]
    ]
];

$cursor = $collection->aggregate($pipeline, $options);

foreach ($cursor as $document) {
    echo $document['_id'] . "\n";
}

MongoDB to Ruby

# Requires: Ruby v2.0+ and Mongo driver (gem install mongo)
require "mongo"

client = Mongo::Client.new(["host:port"], :database => "chicago")
collection = client[:housing]

# Created with Studio 3T, the IDE for MongoDB - https://studio3t.com/

pipeline = [
    {
        "$group" => {
            :_id => {
                :zip_code => "$zip_code"
            },
            "COUNT(*)" => {
                "$sum" => 1
            },
            "MAX(units)" => {
                "$max" => "$units"
            }
        }
    },
    {
        "$project" => {
            "COUNT(*)" => "$COUNT(*)",
            "MAX(units)" => "$MAX(units)",
            :zip_code => "$_id.zip_code",
            :_id => 0
        }
    },
    {
        "$sort" => {
            "MAX(units)" => -1
        }
    }
]

options = {
    :allow_disk_use => true
}

cursor = collection.aggregate(pipeline, options)

cursor.each do |document|
    puts document[:_id]
end

Instant code? Check. What about these other time-saving features:

  • IntelliShell – Write MongoDB queries faster with Studio 3T’s mongo shell. Autocomplete field names, collection names, shell methods, JavaScript standard library functions, and more.
  • Data Compare and Sync – Compare any two MongoDB collections across databases and sync differences between the two.
  • Import and Export Wizard – Import to and export from MongoDB in the following formats: JSON, CSV, SQL, BSON/mongodump, and another collection.

How helpful was this article?
This article was hideous
This article was bad
This article was ok
This article was good
This article was great
Thank you for your feedback!

About The Author

Kathryn Vargas

When she's not writing about working with MongoDB, Kathryn spends her free time exploring Berlin's food scene, playing the drums, learning languages (current mission: German), and hiking.

Article navigation

Related articles

  • Lesson 2, Exercise 3: Using Query Code and IntelliShell to modify and run a find statement
  • What’s New in Studio 3T 2021.6 | Integrating Hackolade, code folding, and more
  • Lesson 4, Exercise 2: Using Visual Query Builder to query a single array value
  • Lesson 4, Exercise 3: Using Visual Query Builder to query multiple array values
  • Lesson 5, Exercise 3: Using Visual Query Builder to query embedded documents

Studio 3T

MongoDB Enterprise Certified Technology PartnerSince 2014, 3T has been helping thousands of MongoDB developers and administrators with their everyday jobs by providing the finest MongoDB tools on the market. We guarantee the best compatibility with current and legacy releases of MongoDB, continue to deliver new features with every new software release, and provide high quality support.

Find us on FacebookFind us on TwitterFind us on YouTubeFind us on LinkedIn

Education

  • Free MongoDB Tutorials
  • Connect to MongoDB
  • Connect to MongoDB Atlas
  • Import Data to MongoDB
  • Export MongoDB Data
  • Build Aggregation Queries
  • Query MongoDB with SQL
  • Migrate from SQL to MongoDB

Resources

  • Feedback and Support
  • Sales Support
  • Knowledge Base
  • FAQ
  • Reports
  • White Papers
  • Testimonials
  • Discounts

Company

  • About Us
  • Blog
  • Careers
  • Legal
  • Press
  • Privacy Policy
  • EULA

© 2023 3T Software Labs Ltd. All rights reserved.

  • Privacy Policy
  • Cookie settings
  • Impressum

We value your privacy

With your consent, we and third-party providers use cookies and similar technologies on our website to analyse your use of our site for market research or advertising purposes ("analytics and marketing") and to provide you with additional functions (“functional”). This may result in the creation of pseudonymous usage profiles and the transfer of personal data to third countries, including the USA, which may have no adequate level of protection for the processing of personal data.

By clicking “Accept all”, you consent to the storage of cookies and the processing of personal data for these purposes, including any transfers to third countries. By clicking on “Decline all”, you do not give your consent and we will only store cookies that are necessary for our website. You can customize the cookies we store on your device or change your selection at any time - thus also revoking your consent with effect for the future - under “Manage Cookies”, or “Cookie Settings” at the bottom of the page. You can find further information in our Privacy Policy.
Accept all
Decline all
Manage cookies
✕

Privacy Preference Center

With your consent, we and third-party providers use cookies and similar technologies on our website to analyse your use of our site for market research or advertising purposes ("analytics and marketing") and to provide you with additional functions (“functional”). This may result in the creation of pseudonymous usage profiles and the transfer of personal data to third countries, including the USA, which may have no adequate level of protection for the processing of personal data. Please choose for which purposes you wish to give us your consent and store your preferences by clicking on “Accept selected”. You can find further information in our Privacy Policy.

Accept all cookies

Manage consent preferences

Essential cookies are strictly necessary to provide an online service such as our website or a service on our website which you have requested. The website or service will not work without them.

Performance cookies allow us to collect information such as number of visits and sources of traffic. This information is used in aggregate form to help us understand how our websites are being used, allowing us to improve both our website’s performance and your experience.

Google Analytics

Google Ads

Bing Ads

Facebook

LinkedIn

Quora

Hotjar

Functional cookies collect information about your preferences and choices and make using the website a lot easier and more relevant. Without these cookies, some of the site functionality may not work as intended.

HubSpot

Social media cookies are cookies used to share user behaviour information with a third-party social media platform. They may consequently effect how social media sites present you with information in the future.

Accept selected
